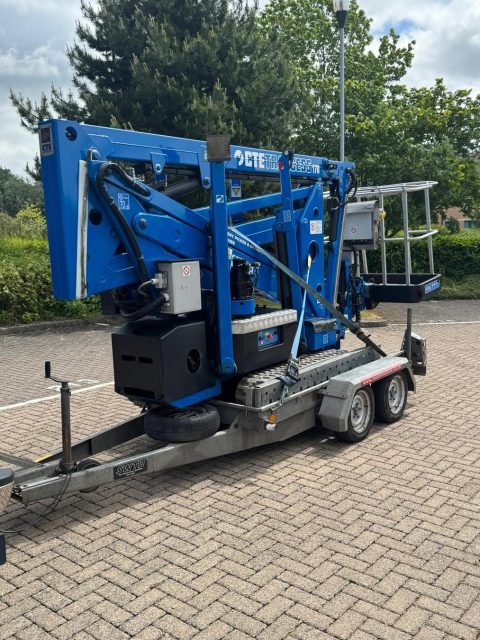

CTE-170

The CTE-170 offers a working height of 17 metres and outreach of over 7 metres.

The CTE Traccess 170 Platform Basket MEWP powered by a 110V 2.2kW electric auxiliary motor or the diesel engine.

Working Height: 17.00m
Platform Height: 15.00m
Max Outreach: 7.50m
Safe Working Load (SWL): 200.00kg
Length Stowed: 4.25m
Width: 0.80m
Height Stowed: 2.00m
Weight: 2050.00kg
Power source: Diesel and Electric

Product Description

It has an articulated boom (with 2 elements), a telescopic boom (main boom + 2 extension) and a Jib, which enable a working height of 17 metres and Max outreach of 7.5 metres.

The CTE 170 has Dual drive speed and Electro-hydraulic steering from the ground via umbilical remote control system, and individual proportional electrohydraulic controls in basket.

The basket measures 1300x700x1100 and is self levelling.
Variable jacking via 4 hydraulic outriggers enables use in restrictive environments even with uneven ground.
